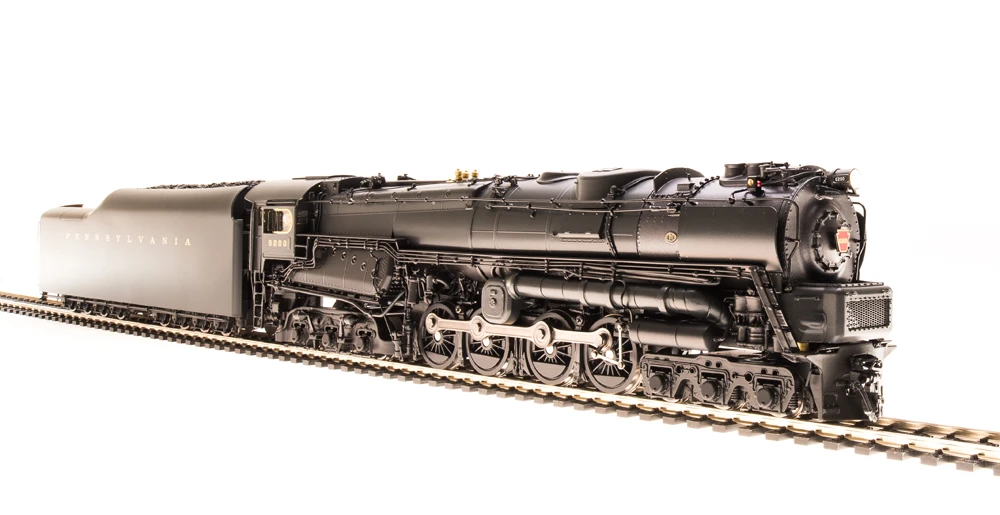

BLI 6185 HO Scale 6-8-6 Pennsylvania S2 Turbine Steam Loco PRR 6200 (Small Shields) Paragon4 Hybrid

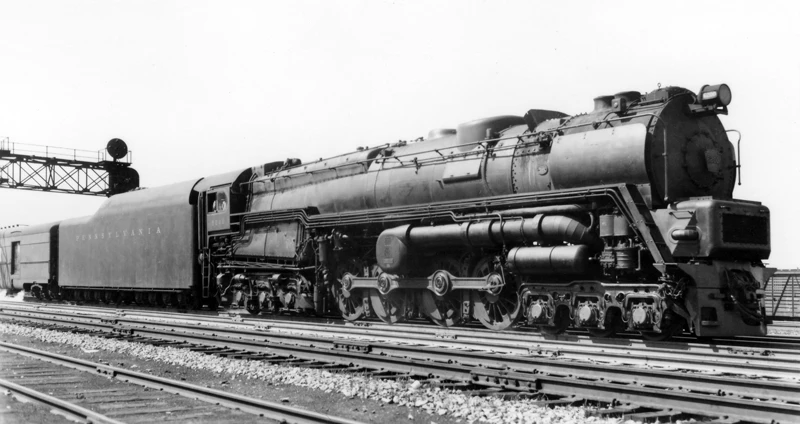

The world’s first and only locomotive with a 6-8-6 wheel configuration was introduced in 1944. The Pennsy Railroad’s S2 direct-drive steam turbine powered locomotive was a unique experiment in motive power. Its six-wheel leading truck, eight drive wheels, and six-wheel trailing truck made for a massive running platform that was quite efficient when the S2 was at speed. Orginally the S2 was to be a 4-8-4, but wartime restrictions on the usage of lighter steel alloys forced the use of heavier alloys – eventually driving the weight of the entire locomotive to need larger leading and trailing trucks.

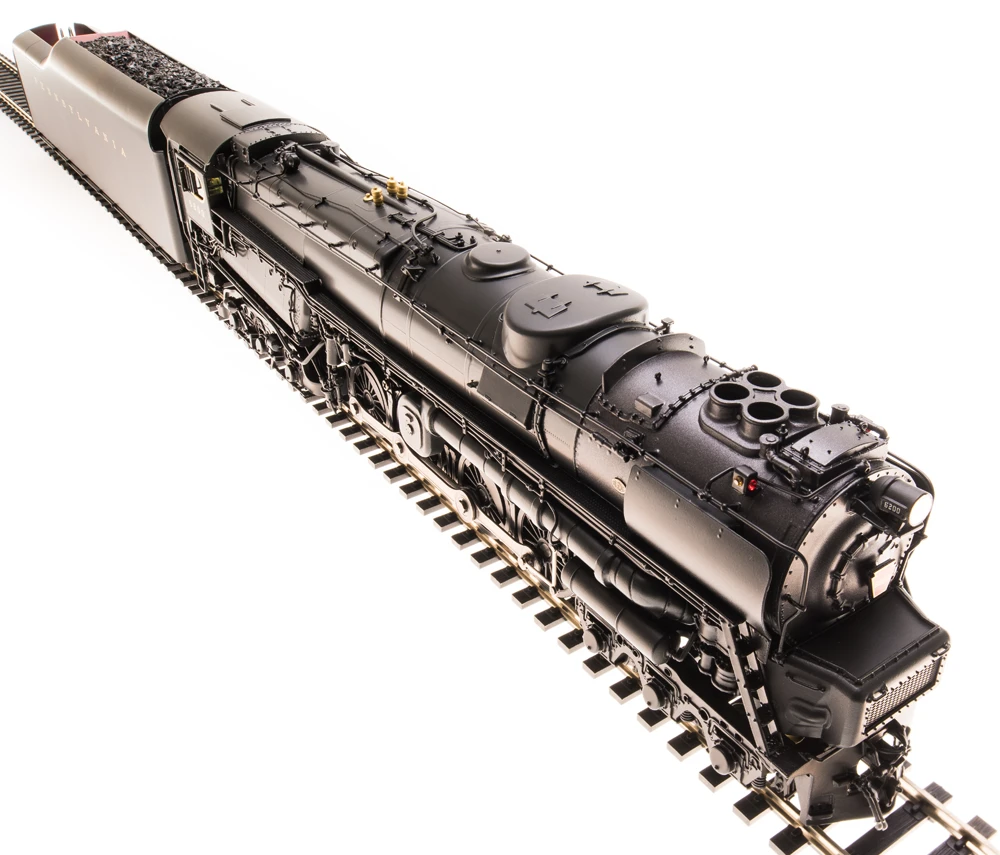

The S2 is outfitted with two steam turbines – one for each direction of travel. The large boiler sports a Belpaire firebox and the turbines exhaust was channeled through four pipes in the smoke box. A Worthington-style feedwater heater honed the S2’s efficiency further.

This iconic Pennsylvania Railroad steam locomotive is a must-have for every series PRR steam collector. We are offering the S2 in three prototypical variations: As-Delivered without smoke deflectors, equipped with small smoke deflectors, and equipped with large smoke deflectors (the longest lasting appearance). We are also offering one S2 Turbine in a Tuscan Red fantasy paint scheme, and one painted a brass color so the entire engine has a varnished brass appearance. All of the models have hand-crafted brass boilers, cabs, and tender bodies, and die cast locomotive and tender chassis. Each model comes with our Paragon4 DC/DCC Sound system with synchronized puffing smoke and integral GoPack capacitors.

Industry-leading Model Features:

• ALL-NEW Paragon4 Sound & Control System
• Synchronized Puffing Smoke with Chuff Sound
• Variable Puffing Smoke Intensity and timing
• Integral DCC Decoder with Back EMF for Industry Best Slow Speed Operation in DC and DCC
• Precision Drive Mechanism engineered for continuous heavy load towing and smooth slow speed operation
• 5-Pole Can Motor with Skew Wound Armature
• Handcrafted Brass Boiler, Cab, and Tender Body, and Heavy Die Cast Chassis for Increased Tractive Effort
• Premium Caliber Painting with Authentic Paint Schemes
• Prototypical Light Operation with Separately Controllable Headlight, Reverse Light, and Cab Light
• Factory-installed Engineer and Fireman Figures

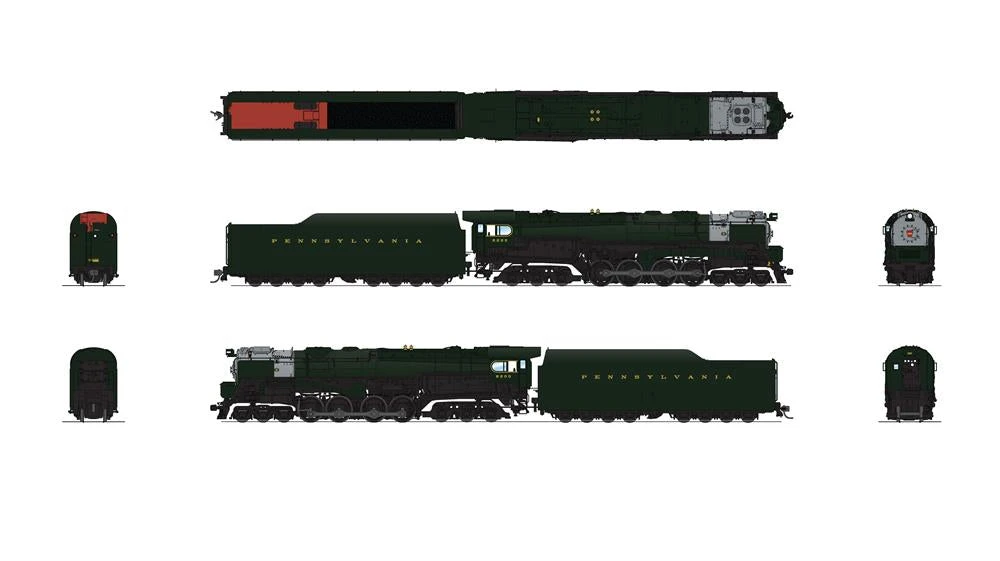

• Three Prototypically Accurate Variations
• Many Separately Applied Details such as Handrails, Grab Irons, Ladders, Piping, Cab Glass, Whistle, Brass Bell, Markers, Numberboards, Air Tanks, and Many Others
• Equipped with Rubber Traction Tires for Increased Pulling Power
• Recommended Minimum Radius: 22 inches
• Accurate Prototypical Sounds for the PRR S2 Turbine Locomotive

Broadway Limited Imports is proud to introduce Paragon4: The new benchmark for premium HO sound-equipped locomotives. These DC and DCC-Sound equipped locomotives feature the ALL-NEW Paragon4 sound and control system. Each Paragon4 locomotive comes with BLI’s own integral DCC Decoder factory installed. Paragon4 locomotives offer Dual Mode DC and DCC operation with superb back EMF motor control, improved DC motor control, built-in capacitor pack for more reliable electrical pick-up, industry best on-board sound with Rolling Thunder functionality, Pro Lighting Mode for prototypical light control, Switcher model for precise low speed control, recordable DCC operation for automated playback, and the same excellent detail level as Broadway Limited’s Paragon3 Series models.

Paragon4 Sound & Control System Features:

• Operates in DC & DCC with improved DC speed control (use DCMaster for DC Sound)
• Built-In capacitor pack to navigate imperfect track
• Capacitor Pack automatically disabled on program track for full compatibility with JMRI Decoder Pro
• Pro Lighting Mode offers individual control of all lights on model
• Switcher Mode for precise low speed control.
• Record & Play Operation – Records and plays back sounds and movements once or repeatedly for automatic operation
• High Resolution Audio
• Quillable Whistle for various whistle lengths and patterns
• Choice of 3 selectable Horns
• Alternate Whistle / Horn where applicable for locomotive with air horn and steam whistle – both the main whistle and alternate can be easily played
• Adjustable bell ringing interval for faster or slower bell
• Numerous user-mappable functions with available keys
• Johnson Bar Sound at Direction Change
• Multiple realistic passenger and crew sounds play on command
• Grade Crossing Automatic Signal
• Automatic Forward / Reverse Signal – When activated, stopping triggers and stop whistle toot. When moving forward from a stopped position, toots twice. When moving in reverse. toots three times.
• Chuff sound intensity varies with load
• Individually adjustable sound volumes for each effect
• EZ Reset Button for quick return to factory default settings

**Specifications are subject to change.
